Fully automatic air duct U-shaped 5-wire
Can complete the automatic production of square air ducts, achieve efficient and accurate production.
Category：
Duct Series
Key words：
Duct Series
Optional
+Intelligent production management system - MES management, complete the direct management of production equipment in the office , conduct unmanned production data transmission, complete data feedback and production process tracking
+Square reinforcement, add inner flange
+Stud snap bite
+Muffler production function
+ C shaped flange
+ Distal duct processing function(plug)

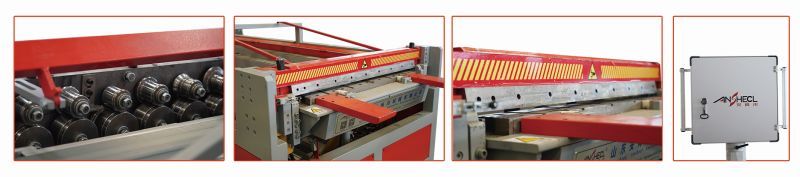

FEATURES
1. U-shaped structure, compact equipment arrangement, less land occupation, suitable for small size plants.
2. Adopt servo-driven pneumatic manipulator pushing material, with lock seams, not only fast, but also more precise positioning.
3. Save labor and high efficiency.
4. With production management function, with day count, total count.
5. Enter the flange on both sides of the touch punch hole to ensure the stability of the operation.
FUNCTIONAL PROCESS
Uncoiling → leveling → grooving → punching sharp mouth and square mouth → cutting to length → 1 # conveyor → rotating locker forming machine → 2 # conveyor → dual-machine linkage angle bar flange machine, dual-machine linkage TDF flange machine → manipulator feeding and conveying platform → folding square → discharging
TECHNICAL INDICATORS
1.0.5-1.5mm galvanized sheet, 0.5-1.2mm stainless steel (304 or GB 201) TDF flange air duct, angle bar flange air duct.
2. Shearing plate thickness: 2.0mm galvanized plate (excluding grooving, punching ports and holes), 1.5mm stainless steel (excluding grooving, punching ports and holes).
3. Optional film covering function and welding mode.
4. With film covering function(Prevent the board from mildewing, getting damp, and from oil stains adhering to its surface) and welding mode.
BASIC CONFIGURATION
| 1. An electric integrated decoiler, include 4pcs of 7 tons coils (optional 8 tons or 10 tons of hydraulic decoiler) |
| 2.A supporting frame |
| 3.A host(leveling and grooving, punching ports and holes,cutting to length) |
| 4. No.1 conveyor |
| 5.A rotary locker forming machine |
| 6. No.2 conveyor |
| 7.A duplex TDF flange forming |
| 8.A duplex angle bar flange forming |
| 9.A folding platform |
| 10. Control system |
WORK FLOW
MAIN TECHNICAL DATA
| NO. | Model | Capacity in plate thicknessrange (mm) | Max-width (standard) (mm) | Max-working speed (m/min) | Coiler max-weight (kg) | Dimensions(mm) | Power (kw) | Weight (kg) | ||
| L (mm) | W (mm) | H (mm) | ||||||||
| 1001-1 | ADL-U5-1250-Z-S | Stainless steel0.5-1.2 galvanized sheet0.5-1.5 | 1250 | 15 | 7000 | 18000 | 6000 | 1500 | 34 | 17000 |
| 1001-2 | ADL- U5-Z-S 1500 | Stainless steel0.5-1.2 galvanized sheet0.5-1.5 | 1500 | 15 | 7000 | 18000 | 7100 | 1500 | 34 | 18000 |
| 1001-3 | ADL-U5-1250-Z-P | galvanized sheet0.5-1.2 | 1250 | 15 | 7000 | 18000 | 6500 | 1500 | 30 | 14500 |
