Fully automatic air duct productionline3

Full-automatic duct line 3 is a high cost-effective equipment which is suitable for the production of TDF flange,Angle steel flange as well as the TDC flange.
Sheets with the angle steel flange and TDC flange can be folded into rectangular duct on the machine automatically.
Chinese and English can be easily converted.
Max feeding speed is 15m/min.length tolerance is ±0.5mm ,diagonal tolerance is ±0.8mm.

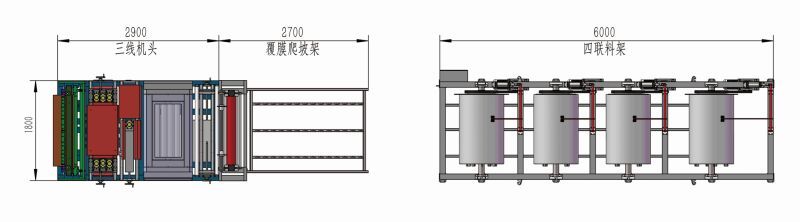

BASIC CONFIGURATION

1. A decoiler (2 coils; max loading per coiler 7 tons)

2.A material guiding frame

3.A main machine

4. A CNC System

MAIN TECHNICAL DATA

NO.	Model	Capacity in plate thickness range (mm)	Max-width (standard) (mm)	Max-working speed (m/min)	Coiler max-weight (Kg)	Dimensions(mm)			Power (kw)	Weight (kg)
NO.	Model	Capacity in plate thickness range (mm)	Max-width (standard) (mm)	Max-working speed (m/min)	Coiler max-weight (Kg)	L (mm)	W (mm)	H (mm)	Power (kw)	Weight (kg)
1003-3	ADL-3-1250	0.5-1.5	1250	15	7000	2200 2500	1800 1800	1300 1500	10	3000
1003-4	ADL-3-1500	0.5-1.5	1500	15	7000	2200 2500	2000 2200	1300 1500	10	3500

WORK FLOW

FACTORY

SHANDONG ANSHECL MACHINERY CO.,LTD is a company specialized in the design, production, and sales of automated production lines. The company has a production workshop of 10,000 square meters and is engaged in the research, development, production, and sales of laser production lines, optical products, and high-temperature new materials.

Exhibition

The company is committed to promoting the development of the environmental protection industry through technological innovation. The company has a comprehensive quality management system and has obtained IS09001 quality system certification and EU CE quality system certification.
