TDF Flange Forming Machine

TDF flange forming machine is a main equipment for TDF flange forming, especially for large-scale, standardized and automatic production

Category：

TDF Flange Foming Machine

Key words：

TDF Flange Foming Machine

+86-16653852359

ltt@anshecl.com

E-mail

Message

CHARACTERISTICS

1. TDF flange forming machine is a main equipment for TDF flange forming, especially for large-scale, standardized and automatic production;
2. Both flanges and “L”shaped clamp can be formed on two sides of the machine simultaneously;
3. With rolling shear, sheet automatic feed for forming the ”L”shaped clamp;
4. All rollers adopt Gcr15material which enhances wear-resistance of the machine;
5. 14 Groups of rollers forming with stable and good appearance;
6. Adopt pressure bearings to avoid the side plate wear;
7. High-speed, the forming speed is 14m/min.

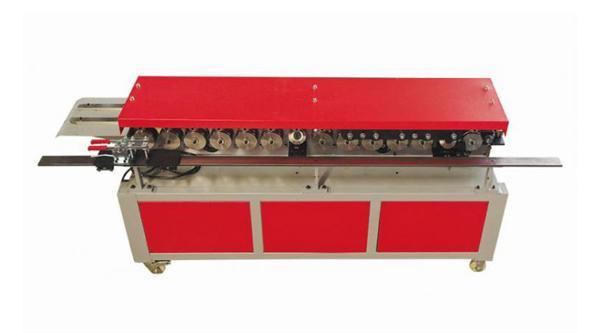

TDF flange forming machine

MAIN TECHNICAL DATA

NO.	Model	Plate Thickness mm	Shape	A-size mm	Power Kw	L×W×H mm	Weight Kg
3001	TDF-08	0.5-0.8		20±0.5	2.2	1500×640× 1200	800
3002	TDF-12	0.6-1.2		34±0.5	2.2	2500×640× 1200	1000
3003	TDF-15	1.0-1.5		35±0.5	4	2800×700× 1250	1500
3004	2-TDF-12	0.6-1.2		34±0.5	5.5	2600×2300× 1200	2500
